Footings
Concrete-free footings
Concrete-free footings provide a quick and environmentally friendly solution to support the entire EZYpole range of products.

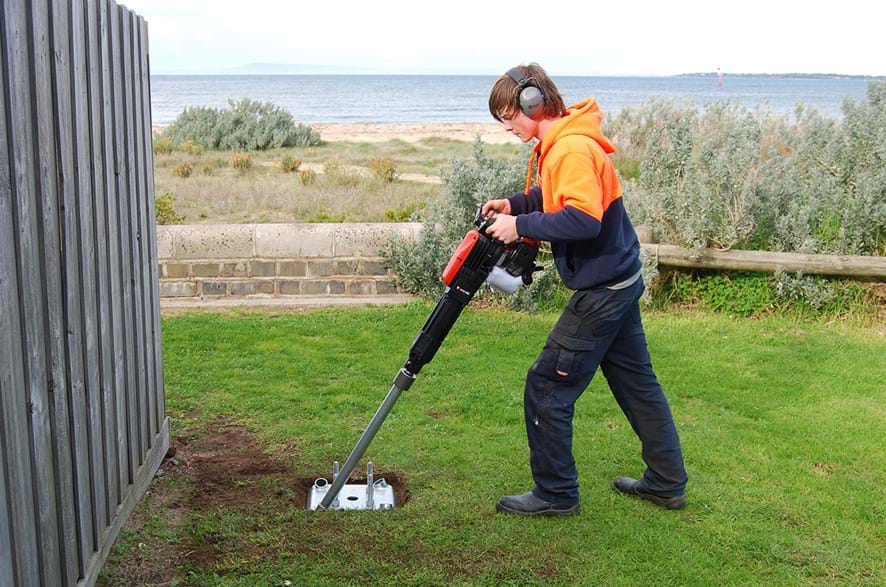

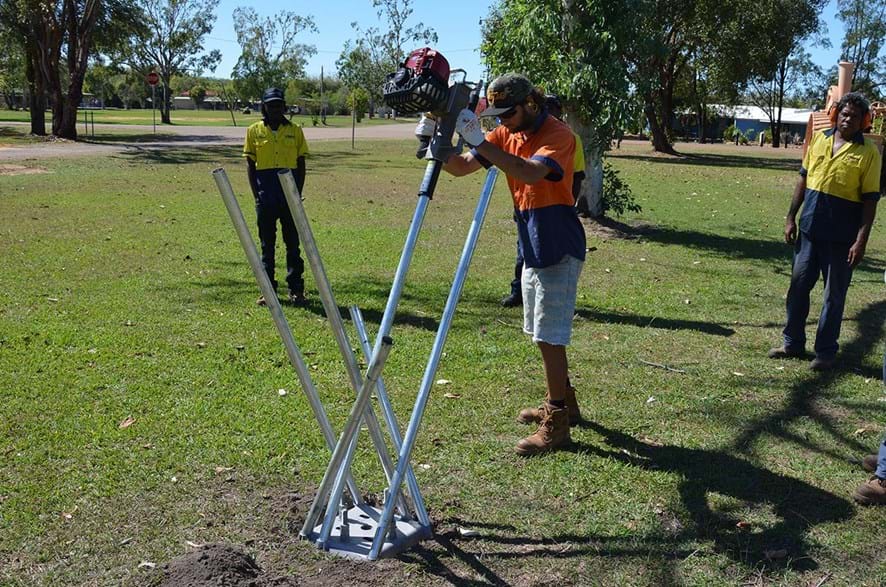

Typical concrete footing systems need a few days’ curing time before poles can be installed. Surefoot footings allow full installation in less than 60 minutes.
Key benefits
- Can handle bending moment loads of up to 700kg.
- Load capacities exceed 8.5t.
- Concrete-free solution.
- Suitable for all poles.
- Reduces labour cost.
- No excavation or spoil.
- No engineering inspections required.
- Suitable for all wind categories and soil types.
- Available for 250, 300 and 350 PCD* base plates.
-
Great for hard-to-access, sloping and remote sites.
* Pitch Circle Diameter

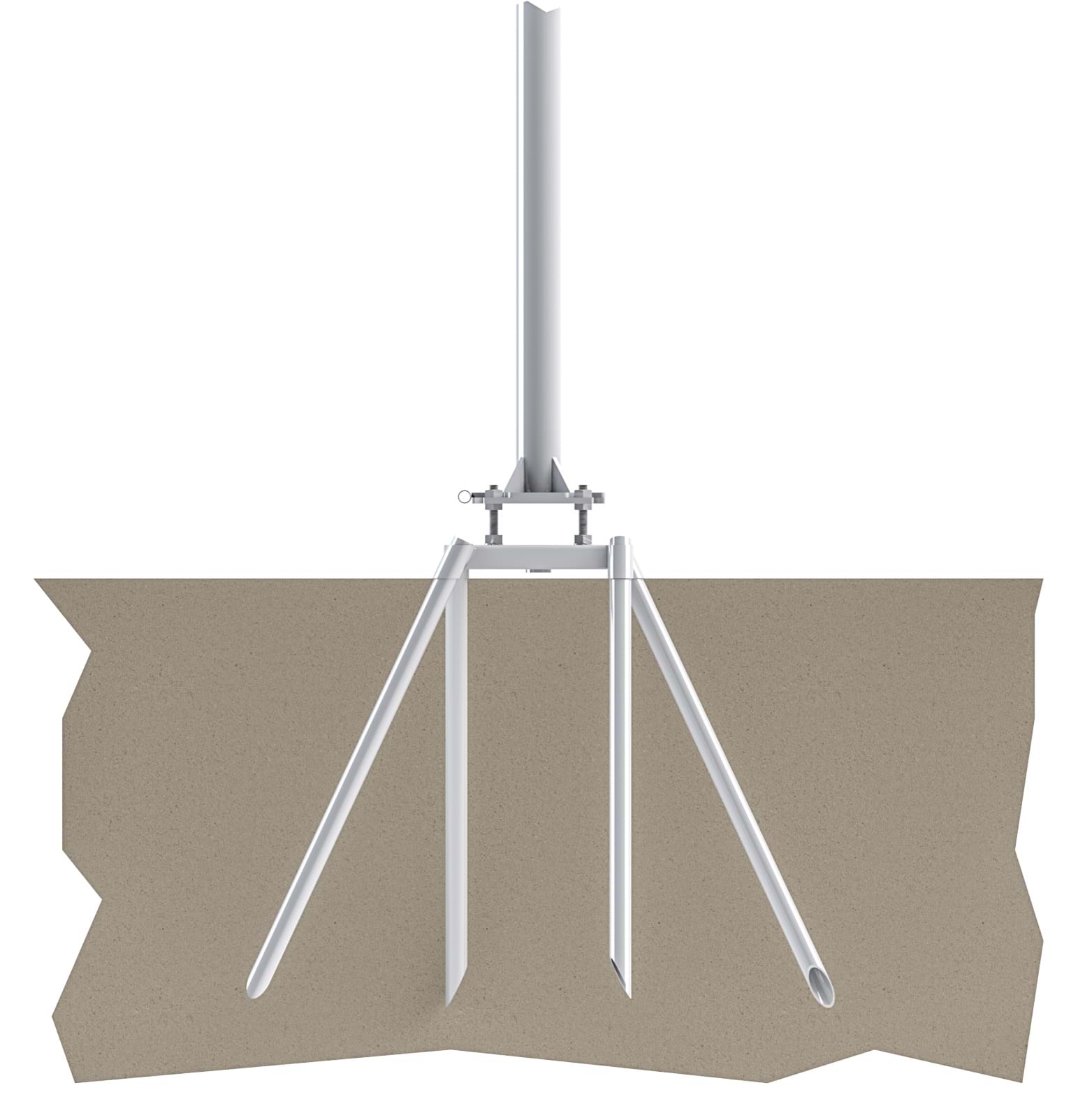

Concrete-free footing illustration
In-ground rag bolt footing
In-ground rag bolts provide a cost-effective solution for permanent pole installations. Constructed from high-grade steel, in-ground rag bolts are engineered to provide a solid base for all pole types.
Key benefits
- Cost-effective footing solution for permanent installations.
- Suitable for all poles.
- Suitable for all wind categories.
- Cost-effective solution.
- Available for 250, 300 and 350 PCD* base plates.
- Suitable for all wind categories and soil types.
- No digging or excavating machine required.
* Pitch Circle Diameter

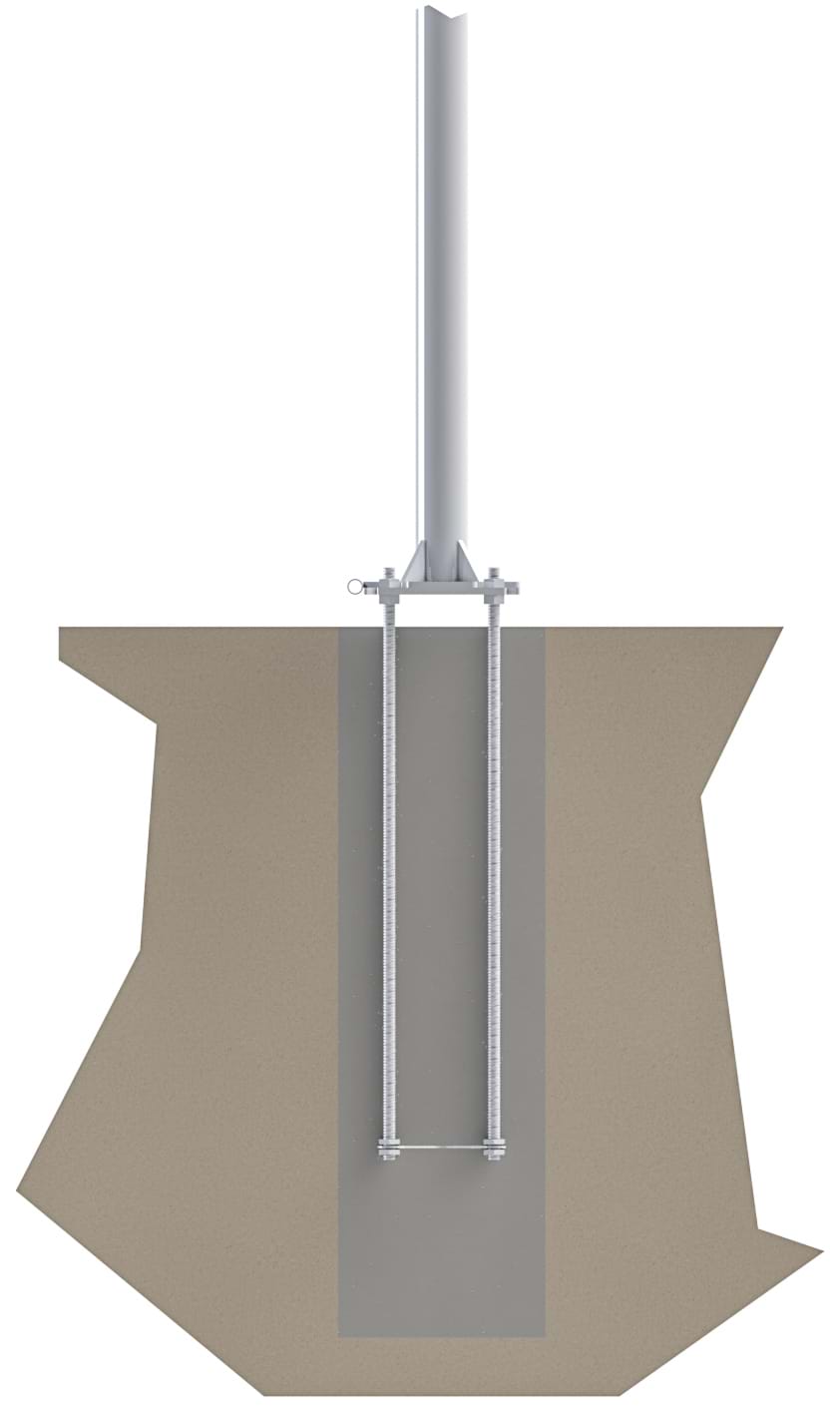

In-ground rag bolt illustration
